Stainless steel razor wire is made with stainless steel sheet and wire AISI 304.

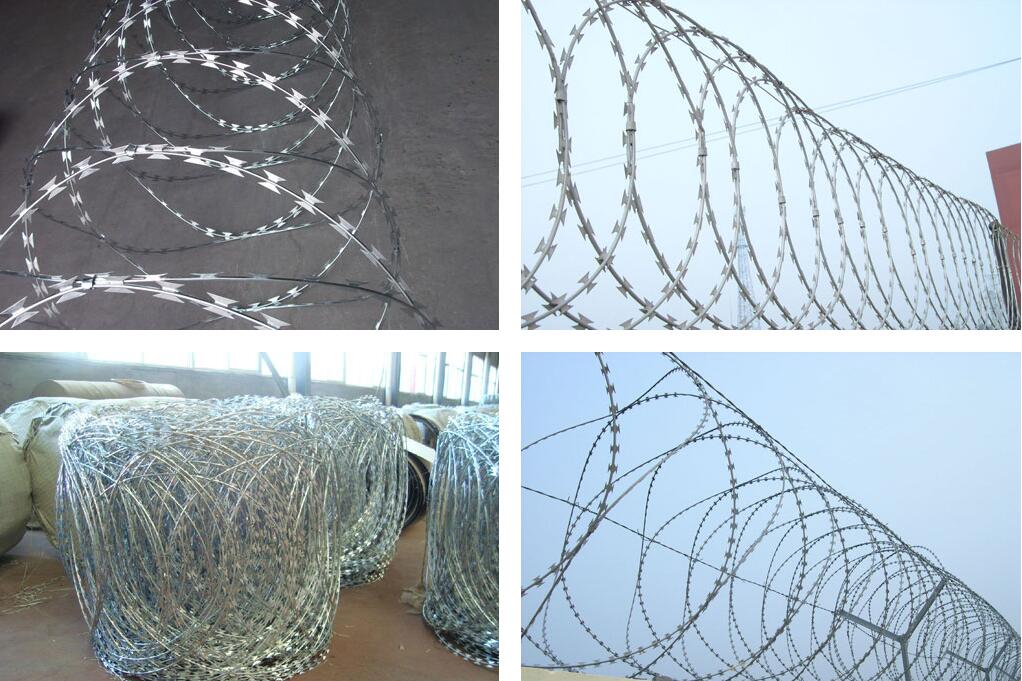

Stainless steel razor wire offers longer service life compared with other materials, and much better property of corrosion resistance. This kind of razor wire is supplied in straight ribbons, single coil concertina or crossed concertina razor coils.
Stainless steel razor wire is available with a variety of blade styles: BT-10, BT-12, BT-18, BT-22, BT-28, BT-30, BT-60, etc. The barb length, barb spacing and barb width can be produced according to your specific requirements.
Razor Blade Specification
|
Reference Number
|
Blade Style
|
Thickness
|
Wire Dia
|
Barb
Length
|
Barb
Width
|
Barb
spacing
|
BTO-10
|
|
0.5±0.05
|
2.5±0.1
|
12±1
|
13±1
|
26±1
|
BTO-12
|
|
0.5±0.05
|
2.5±0.1
|
12±1
|
15±1
|
26±1
|
BTO-18
|
|
0.5±0.05
|
2.5±0.1
|
18±1
|
15±1
|
33±1
|
BTO-22
|
|
0.5±0.05
|
2.5±0.1
|
22±1
|
15±1
|
34±1
|
BTO-28
|
|
0.5±0.05
|
2.5±0.1
|
28±1
|
15±1
|
34±1
|
BTO-30
|
|
0.5±0.05
|
2.5±0.1
|
30±1
|
18±1
|
34±1
|
CBT-60
|
|
0.6±0.05
|
2.5±0.1
|
60±2
|
32±1
|
96±2
|
CBT-65
|
|
0.6±0.05
|
2.5±0.1
|
65±2
|
21±1
|
100±2
|
Barbed Tape Concertina (CBT);Barbed Tape Obstacle (BTO)
Standard materials are either galvanized or stainless steel.
Standard styles products are shown in the tables above, special specifications are available on request.
Barbed Tape Wire Specification
|
Loop Outside Diameter
|
No. of Loops
|
Standard Length per Coil
|
Type
|
Notes
|
450mm
|
33
|
7-8M
|
CBT-60.65
|
Single coil
|
500mm
|
56
|
12-13M
|
CBT-60.65
|
Single coil
|
700mm
|
56
|
13-14M
|
CBT-60.65
|
Single coil
|
960mm
|
56
|
14-15M
|
CBT-60.65
|
Single coil
|
450mm
|
56
|
8-9m(3 CLIPS)
|
BTO-10.12.18.22.28.30
|
Cross type
|
500mm
|
56
|
9-10M (3 CLIPS)
|
BTO-10.12.18.22.28.30
|
Cross type
|
600mm
|
56
|
10-11M(3 CLIPS)
|
BTO-10.12.18.22.28.30
|
Cross type
|
600mm
|
56
|
8-10M (5 CLIPS)
|
BTO-10.12.18.22.28.30
|
Cross type
|
700mm
|
56
|
10-12M (5 CLIPS)
|
BTO-10.12.18.22.28.30
|
Cross type
|
800mm
|
56
|
11-13M (5 CLIPS)
|
BTO-10.12.18.22.28.30
|
Cross type
|
900mm
|
56
|
12-14M (5 CLIPS)
|
BTO-10.12.18.22.28.30
|
Cross type
|
960mm
|
56
|
13-15M (5 CLIPS)
|
BTO-10.12.18.22.28.30
|
Cross type
|
980mm
|
56
|
14-16M (5 CLIPS)
|
BTO-10.12.18.22.28.30
|
Cross type
|
|
