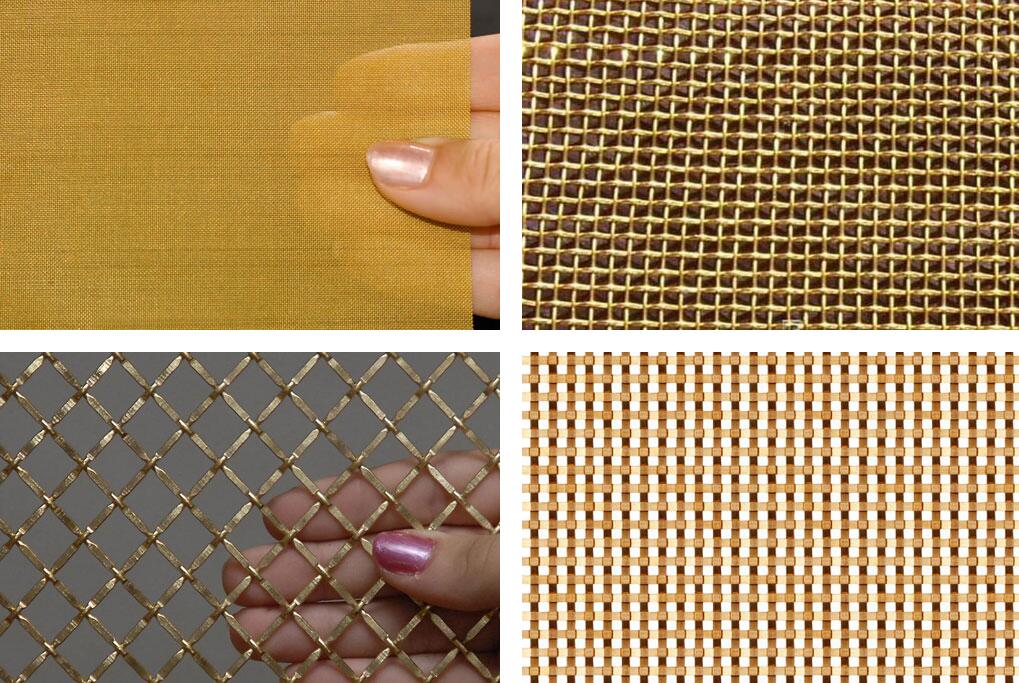

Brass mesh is woven by brass wire, phosphor bronze wire, or copper wire. It is used for separation and sifting kinds pellet, grain, porcelain earth and glass, chinaware printing and filter liquid.
Brass mesh specifications:
Brass mesh 6 mesh/inch - 200 mesh/inch; copper wire cloth 10 mesh/inch - 60 mesh/inch; phosphor bronze wire cloth 120 mesh/inch - 360 mesh/inch.
Wire diameter: 0.051mm - 0.711mm.
Mesh opening: 0.076mm - 3.522mm.
Width: 0.914M, 1M, 1.5M.
Length/roll: 30M.
Weaving methods: plain weave, twill weave or dutch weave.
|
Mesh
|
Wire Dia. (MM)
|
Opening (mm)
|
|
SWG
|
mm
|
inch
|
|
6 mesh
|
22
|
0.711
|
0.028
|
3.522
|
|
8 mesh
|
23
|
0.610
|
0.024
|
2.565
|
|
10 mesh
|
25
|
0.508
|
0.020
|
2.032
|
|
12 mesh
|
26
|
0.457
|
0.018
|
1.660
|
|
14 mesh
|
27
|
0.417
|
0.016
|
1.397
|
|
16 mesh
|
29
|
0.345
|
0.014
|
1.243
|
|
18 mesh
|
30
|
0.315
|
0.012
|
1.096
|
|
20 mesh
|
30
|
0.315
|
0.0124
|
0.955
|
|
22 mesh
|
30
|
0.315
|
0.0124
|
0.840
|
|
24 mesh
|
30
|
0.315
|
0.0124
|
0.743
|
|
26 mesh
|
31
|
0.295
|
0.0116
|
0.682
|
|
28 mesh
|
31
|
0.295
|
0.0116
|
0.612
|
|
30 mesh
|
32
|
0.247
|
0.011
|
0.573
|
|
32 mesh
|
33
|
0.254
|
0.010
|
0.540
|
|
34 mesh
|
34
|
0.234
|
0.0092
|
0.513
|
|
36 mesh
|
34
|
0.234
|
0.0092
|
0.472
|
|
38 mesh
|
35
|
0.213
|
0.0084
|
0.455
|
|
40 mesh
|
36
|
0.193
|
0.0076
|
0.442
|
|
42 mesh
|
36
|
0.193
|
0.0076
|
0.412
|
|
44 mesh
|
37
|
0.173
|
0.0068
|
0.404
|
|
46 mesh
|
37
|
0.173
|
0.0068
|
0.379
|
|
48 mesh
|
37
|
0.173
|
0.0068
|
0.356
|
|
50 mesh
|
37
|
0.173
|
0.0068
|
0.335
|
|
60 × 50 mesh
|
36
|
0.193
|
0.0076
|
-
|
|
60 × 50 mesh
|
37
|
0.173
|
0.0068
|
-
|
|
60 mesh
|
37
|
0.173
|
0.0068
|
0.250
|
|
70 mesh
|
39
|
0.132
|
0.0052
|
0.231
|
|
80 mesh
|
40
|
0.122
|
0.0048
|
0.196
|
|
90 mesh
|
41
|
0.112
|
0.0044
|
0.170
|
|
100 mesh
|
42
|
0.012
|
0.004
|
0.152
|
|
120 × 108 mesh
|
43
|
0.091
|
0.0036
|
-
|
|
120 mesh
|
44
|
0.081
|
0.0032
|
0.131
|
|
140 mesh
|
46
|
0.061
|
0.0024
|
0.120
|
|
150 mesh
|
46
|
0.061
|
0.0024
|
0.108
|
|
160 mesh
|
46
|
0.061
|
0.0024
|
0.098
|
|
180 mesh
|
47
|
0.051
|
0.002
|
0.090
|
|
200 mesh
|
47
|
0.051
|
0.002
|
0.076
|
|
Brass Wire Mesh
