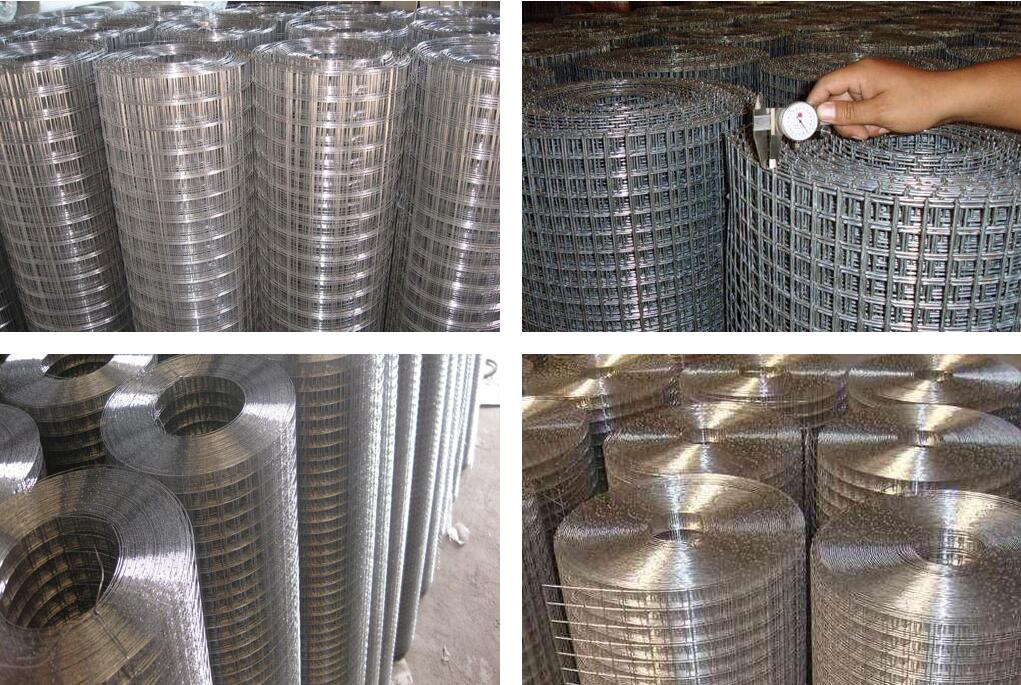

Another type galvanized welded wire mesh is electro galvanized welded wire mesh. Different from hot-dipped galvanized welded wire mesh, electro galvanized welded wire mesh is made of low carbon steel wire through automatic digital controlled welding equipments. It is welded with plain steel wire, then electric galvanized after welding. The finished products are level and flat with sturdy structure.

Mostly they are electro galvanized after welding (GAW), it can offer superior corrosion resistance compared to low carbon steel without the expense of stainless steel. This type of welded wire mesh is designed for building fencing and in other infrastructural purposes. It is a corrosion resistant wire mesh that is largely used in structural building. It is also available in different forms like rolls and panels for industrial uses.

Electro galvanized welded wire mesh typical specification:
5/8" × 5/8", Wire Gauge 18, 19, 20, 21;
3/4" × 3/4", Wire Gauge 16, 17, 18, 19, 20, 21;
1" × 1/2", Wire Gauge 16, 17, 18, 19, 20, 21;
1-1/2" × 1-1/2", Wire Gauge 14, 15, 16, 17, 18, 19;
1" × 2", Wire Gauge 14,15, 16;
2" × 2", 12, 13, 14, 15, 16.

Mesh inch	Width length	Weight
1/2	3ft. × 50ft.	8.25kg/roll
1/2  1/2  1/2  3/4	4ft. × 50ft.  5ft. × 50ft.  6ft. × 50ft.  3ft. × 50ft.	11kg/coil  13.75kg/coil  16.5kg/coil  15kg/coil
3/4	4ft. × 50ft.	20kg/coil
3/4  3/4  1	5ft. × 50ft.  6ft. × 50ft. 3ft. × 50ft.	25kg/coil  30kg/coil  20kg/coil
1	5ft. × 50ft.	30kg/coil
1	4ft. × 50ft.	25kg/coil
1	6ft. × 50ft.	35kg/coil
